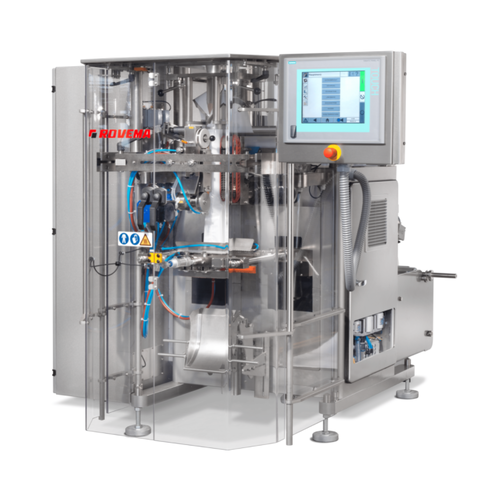

BVC 180 - Continuous Motion Vertical Bagger

BVC 180 - Continuous Motion Vertical Bagger Overview

Continuous Motion Vertical Bagger For Form/Fill/Seal

Versatile And Attractive Bag Styles

The continuous motion vertical bagger BVC form-, fill and seal machine is designed and built for optimum performance, and is equipped with product detection Sense and Seal™ and the high quality sealing technology Premium Seal™ in conjunction with high speed. This will result in a very high machine efficiency rate while producing perfect bag quality.

Highlights:

  • Hygienic design, without hollow spaces or profiles
  • High set performance with bags of perfect quality
  • Reliable product protection due to tight seals
  • Programmable sealing pressure
  • High efficiency and reduced downtimes due to Sense and Seal product detection
  • Easy and quick cleaning, as the product area is separated from the drive area
  • Also available in stainless steel design. The product range can be configured in a flexible way for different customer's applications

Budgetary Pricing:

Whether you're putting together plans for next year's budget or getting ready to order equipment, you'll need some accurate budget numbers. And we're guessing you probably want them promptly!

We can help. We'll turn around budgetary proposals within two working days if you complete the simple form below.

BVC180_01

Machine Specs*

Key Information

Category VFFS
Family BVC
Motion Continuous
Bag styles Pillow
Gusseted Bag,
SUP
Stabilo
3 Side Seal
4 Side Seal
RoPack



Technical Specifications

Max Speed (PPM) 240
Sealing Force 6000
Operating Temp Min C 5
Operating Temp Max C 35
Storage Temp Min C -20
Storage Temp Max C 50



Dimensions

Machine Height mm 1730
Machine Heigh in 68
Machine Width mm 1780
Machine Width in 70
Machine Length mm 2180
Machine Length in 86
Shipping Weight kg 800
Min Package Width mm 50
Min Package Width in 2
Max Package Width mm 180
Max Package Width in 7
Cut-Off min mm 30
Cut-Off Min in 1.18
Cut-Off Max mm 300
Cut-Off Max in 11.8



Energy Usage

Compressed air (bar) 6
Electrical volts 230/400
kVA Max 10
Class of Protection IP54



*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
