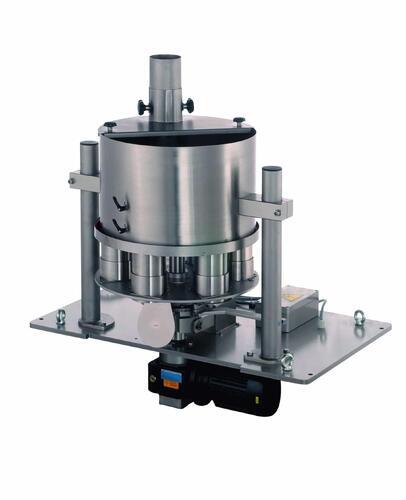

VDD 5 - Volumetric Cup Filler

Intermittent Or Continuous Motion Cup Filling

The most reliable method of dosing

Continuous or intermittent operating modes for free flowing, small piece and granulated products.

The VDD volumetric dosing is a simple unit proven in daily use. The technology is continuously optimised and is robust, reliable and nearly maintenance and wear free.

Depending on product and speed requirements the dosing and discharge functions can be executed continuously or intermittently. The product storage hoppers are always designed according to product characteristics.

Highlights:

  • Frequency controlled drive
  • Adjustable telescopic dosing cups to control the volume
  • Product specific design of hopper
  • Machine shrouding for dust-free dosing on request
  • Individual control of all functions integrated into machine control
VOLUMENDOSIERUNG_20
VDD-Volumetric-Intermittent-or-Continuous-Motion-Cup-Filler

Machine Specs*

Key Information

Category Filling
Family Cup Filler



Technical Specifications

Max Speed 180
Operating Temp Min C 5
Operating Temp Max C 35
Storage Temp Min C -20
Storage Temp Max C 50



Dimensions

Volume Min 7
Volume Max 1900
Length mm 770
Width mm 980
Height mm 900



Energy Usage

Weight kg 200
Electrical volts 230/400
Energy Consumption kW min 0.55



*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
