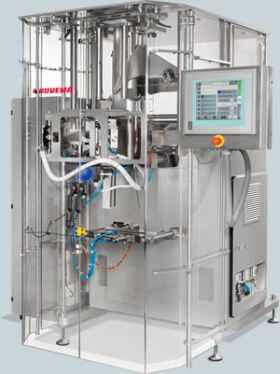

Intermittent Motion Vertical Form/Fill/Seal
No matter if it's dried fruit, cereals or short cut pasta – this machine ensures economical packaging and safe handling of coarse, granulated, or powdery products.
Highlights:
- The wide size range and 'suit-to-application'
add on modules enable the machine to pack and produce large variety of products and bag styles. - Vacuum draw down belts for packaging material transport for the safe handling of a wide range of materials.
- Sense&Seal function to avoid product inclusion in
cross seal and to protect jaws andcut of knife . For increased efficiency and reduced maintenance. - Wear-free servo motor based main drive for the cross-sealing station.
- Sealing time, sealing force and jaw aperture of the cross sealing station can be free configured and stored in machines control system.
Machine Specs*
Key Information
| Category | VFFS |
| Family | BVI |
| Motion | Intermittent |
| Bag styles | Pillow Bag Gussetted Bag Stand Up Pouch Stabilo |
| Sustainable Material Options | Low Gauge Film, Recyclable Film |
Technical Specifications
| Max Speed (PPM) | 120 |
| Sealing Force | 6000 |
| P@cKControl, Rockwell AB | Both |
| Stainless vs COld rolled Steel | N/A |
| Operating Temp Min C | 5 |
| Operating Temp Max C | 35 |
| Storage Temp Min C | -20 |
| Storage Temp Max C | 50 |
Dimensions
| Machine Height mm | 2055 |
| Machine Heigh in | 81 |
| Machine Width mm | 2045 |
| Machine Width in | 80.5 |
| Machine Length mm | 2300 |
| Machine Length in | 90.6 |
| Shipping Weight kg | 770 |
| Min Package Width mm | 60 |
| Min Package Width in | 2.36 |
| Max Package Width mm |
260 Optional for gusseted bags: 320 mm |
| Max Package Width in | 10.23 |
| Cut-Off min mm | 40 |
| Cut-Off Min in | 1.6 |
| Cut-Off Max mm | 350 |
| Cut-Off Max in |
13.7 |
|
Film reel width |
680 mm max. |
| Film reel diameter | 450 mm, (optional: 600 mm) |
Energy Usage
| Compressed air (bar) | 6 |
| Compressed air (PSI) | 87 |
| NI/cycle | 0.5 |
| Electrical volts | 230/400 |
| kVA Max | 10 |
| Class of Protection | IP54 |
*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
