SDH 150 - Auger Filler

SDH 150 - Auger Filler Overview

Auger Filler

The most effective method of precise powder dosing

Exact dosing on high technical level for nearly all powder and fine granulated products like milk powder, coffee, spices, flour and chemicals.

The hygienic design of the auger doser SDH simplifies and shortens the process of efficient cleaning and enables a very high degree of hygienic perfection in an efficient way.

The swirled and highly-polished precision dosing augers, designed according to the specific product requirements, ensure more gentle product handling in comparison to standard screws. Special dosing systems are exactly tailored in accordance with the properties of the product to avoid dribble and seal contamination.

Highlights:

  • Design adapted to hygiene directive EHEDG
  • Tool-less change of dosing auger and tube
  • Stainless steel split hopper for easy cleaning
  • Up to 20% product compacting and savings in packaging material for products via vacuum device
  • Available with control system integrated in packaging machine or separate panel

By exact dosing, even with difficult products, the auger doser SDH fulfils the economic demand of the user on the base of the legal standards.

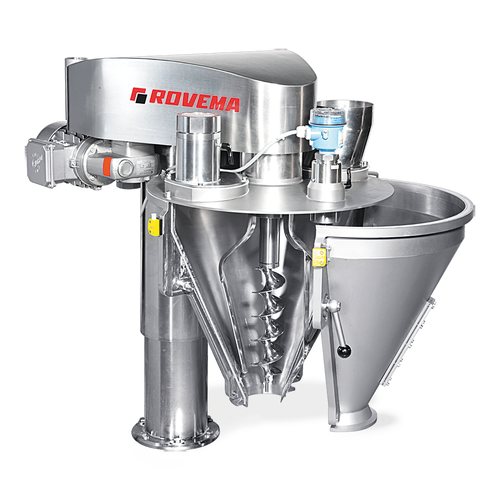

SDH-2011---offen_klein_interpoliert

Machine Specs*

Key Information

Category Filling
Family Auger
Exclusives Aromaperm
Industries
Powders, Coffee,



Technical Specifications

Min Speed 20 BPM
Max Speed 100 BPM
Mechanical Accuracy .5% or less
Residual Oxygen 2% or Less
Material
Aluminum
304 Stainless Steel
316 Stainless Steel
HMI
ab or p@ckccontrol
Operating Temp Min C 5
Operating Temp Max C 35
Storage Temp Min C -20
Storage Temp Max C 50



Dimensions

Volume Min 1000 ccm
Volume Max 80000ccm
Diameter Min 50mm
Diameter Max 150mm
Length mm 700
Width mm 1100
Height mm 1650
Weight kg 200
Max Auger Diameter 14mm



Energy Usage

Electrical volts 230/400
Energy Consumption kW min 3.4



*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
