BVC-310 L - Continuous Motion Vertical Bagging System for Liquids

BVC-310 L - Continuous Motion Vertical Bagging System for Liquids Overview

Continuous Motion Vertical Form/Fill/Seal

Highlights:

  • Continuous Motion
  • Stainless Steel Wash Down
  • Servo Driven Squeeze Roller and Cross Seal
  • Does Not Require a Film Contract
  • Bag Style Limited to Pillow



Key Industries:

Sauces, Liquids, Household Chemicals

Budgetary Pricing:

Whether you're putting together plans for next year's budget or getting ready to order equipment, you'll need some accurate budget numbers. And we're guessing you probably want them promptly!

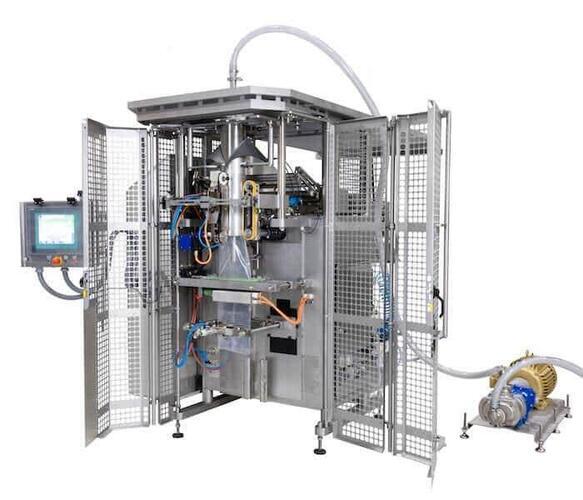

BVL_open_with_pump_sized

Machine Specs*

Key Information

Category VFFS
Family BVC
Motion Continuous
Bag styles Pillow Bag



Technical Specifications

Operating Temp Min C 5
Operating Temp Max C 35
Storage Temp Min C -20
Storage Temp Max C 50



Dimensions

Max Speed (PPM) 210
Sealing Force 6000
Machine Height mm 1665
Machine Heigh in 65.5
Machine Width mm 1400
Machine Width in 55.1
Machine Length mm 2180
Machine Length in 86
Shipping Weight kg 820
Min Package Width mm 60
Min Package Width in 2.36
Max Package Width mm310 310
Max Package Width in 10.24
Cut-Off min mm 40
Cut-Off Min in 1.6
Cut-Off Max mm 450
Cut-Off Max in 17.7



Energy Usage

Compressed air (bar) 6
Electrical volts 230/400
kVA Max 10
Class of Protection IP54



*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
