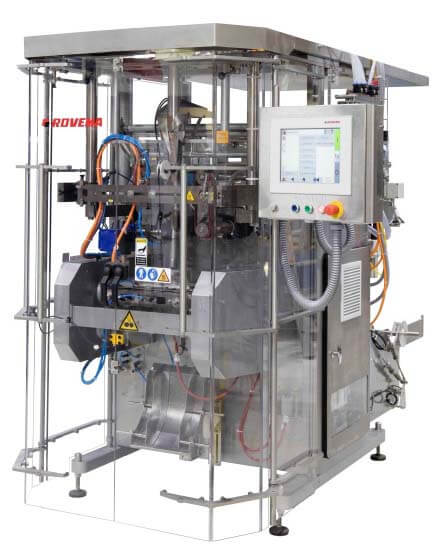

The BVK basic can pack nearly an unlimited range of the most diverse products gently and safely in pillow bags or flat-bottom bags.
Depending on the product - lumpy, granular or powdery - a volumetric or auger feeder or a weigher completes the BVK basic.
Whether you're putting together plans for next year's budget or getting ready to order equipment, you'll need some accurate budget numbers. And we're guessing you probably want them promptly!
We can help. We'll turn around budgetary proposals within two working days if you complete the simple form below.
Category | VFFS |
Family | BVK |
Motion | Continuous |

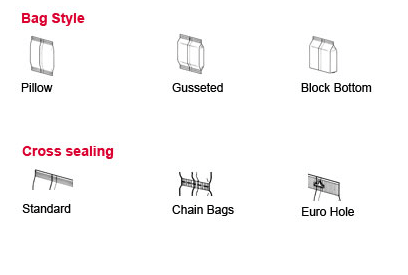

Bag Styles | Pillow Bag Gusseted Bag Flat Bottom Bag |
Closure Options | N/A |
Open Options | Eurohole |
Sustainable Material Options | Low Guage Film, Recyclable Film |
Seal System Options | Heat Seal |
Stainless vs Cold Rolled Steel | N/A |
Speed (Per Minute) | 120 for Pillow Bags, 80 for Gusseted Pillow Bags |
Sealing Force | 5000 |
Compressed Air (bar) | 8 |
Compressed Air (psi) | 87 |
NI/Cycle | 0,25 |
Operating Temp C | 5 - 35 |
Storage Temp C | -20 - 50 |
Machine Height (mm) | 2065 |
Machine Height (in) | 82 |
Machine Width (mm) | 1180 |
Machine Width (in) | 46.5 |
Machin Length (mm) | 2229 |
Machine Length (in) | 88 |
Shipping Weight (kg) | 1100 |
Shipping Weight (lbs) | 2425 |
Operating Height (mm) | 2065 |
Operating Height (in) | 81 |
Operating Width (mm) | 3188 |
Operating Width (in) | 125.5 |
Operating Length (mm) | 2677 |
Operating Length (in) | 105.5 |
Package Width (mm) | 60 - 260 |
Package Width (in) | 2.36 - 10.2 |
Cut-Off (mm) | 120 - 450 |
Cut-Off (in) | 4.37 - 17.7 |
Web Width (mm) | 135 - 545 |
Web Width (in) | 5.32 - 21.45 |
Electrical Volts | 230/400 |
kVA Max | 8 |
Class of Protection | IP54 |
P@cKControl, Rockwell AP | Both |
*Specifications subject to change. Performance and specs depend on various factors including product, environment and integrations.
