Section 1: Horizontal Gear Change Procedures

Introduction

These procedures should only be completed by technicians trained by Rovema and follow industry, local, state and federal safety guidelines.

The machine should be LOCKED OUT and TAGGED OUT before performing maintenance operations!

The actual procedure may need to be modified depending on the work being preformed. Such as just replacing a belt or replacing all the gears.

gear1

Introduction -Continued

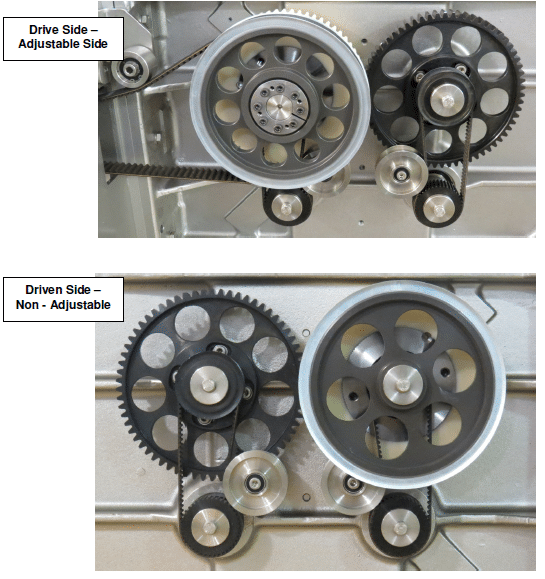

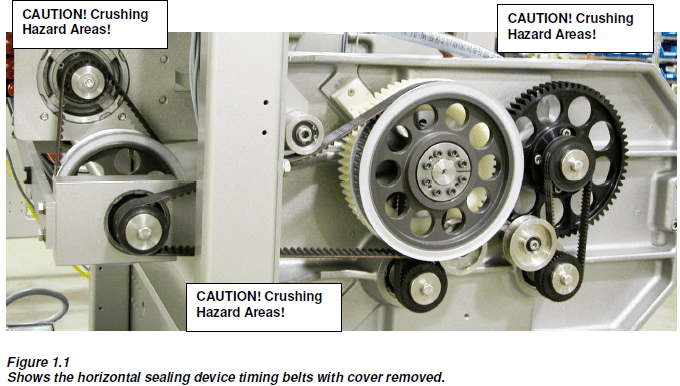

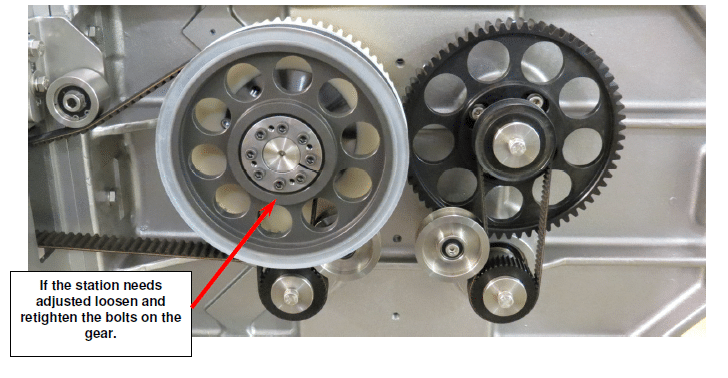

There are gears on both sides of the machine. The Drive side has adjustment while the fixed side does not.

GEAR3

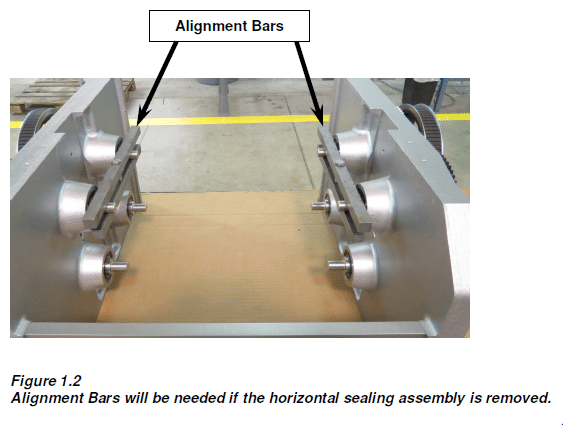

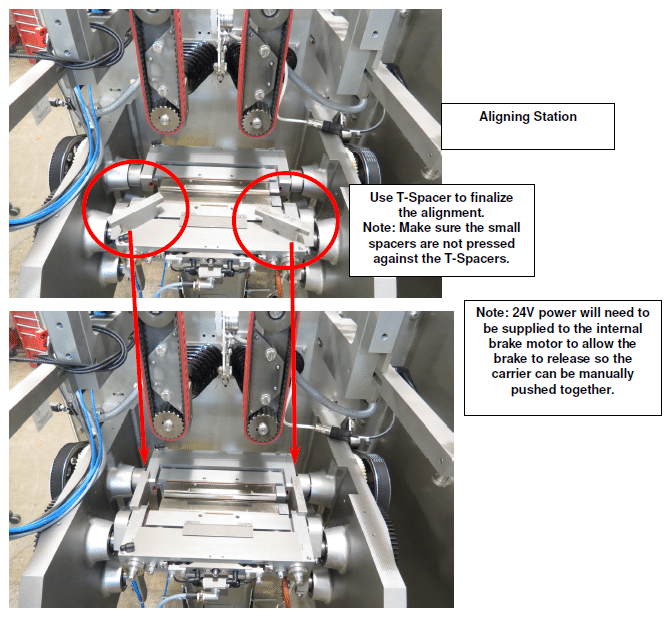

Gear Alignment Bars

The Gear Alignmet Bars will keep the gears aligned, when the jaws are already removed from the machine. They are only needed on the upper shafts.

Do Not Over Tighten the center screw as this could cause the center of the bars to bend slightly and not be completely parallel.

GEAR4

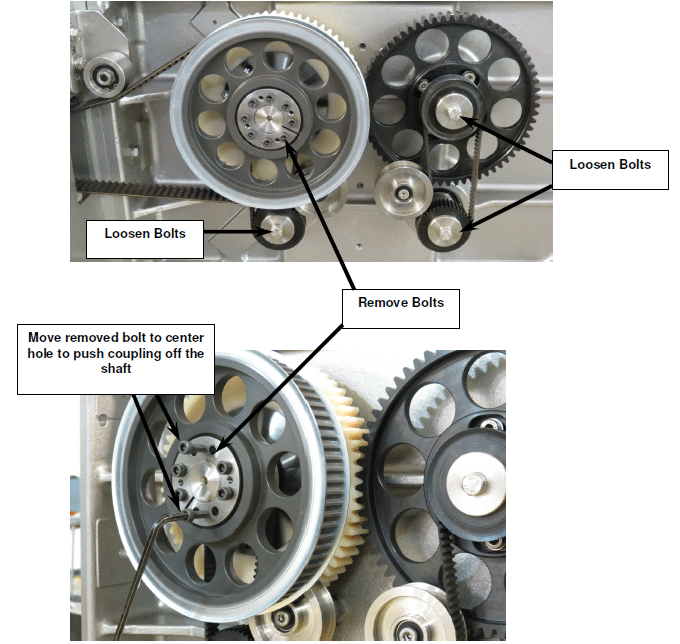

If removing all gears, it is recommended to loosen the below bolts, prior to removing the belts, because the belts help keep the shafts from rotating while loosening the bolts.

GEAR5

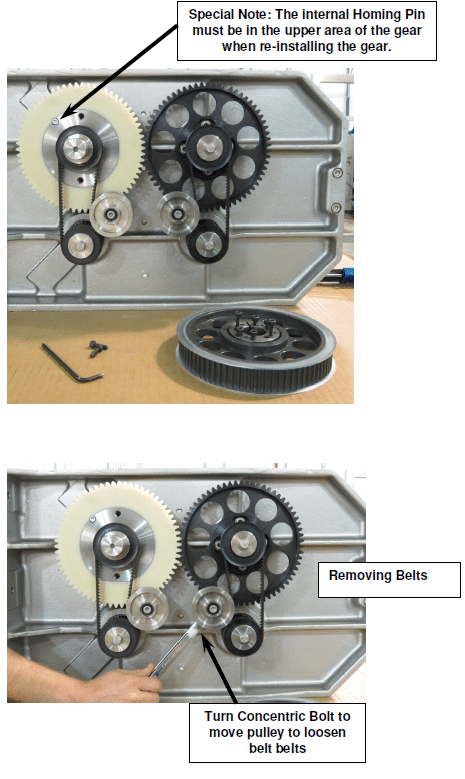

Internal Homing Pin

gear6

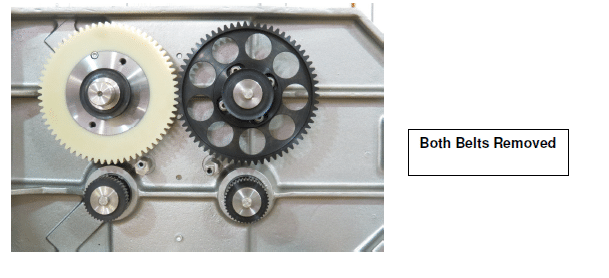

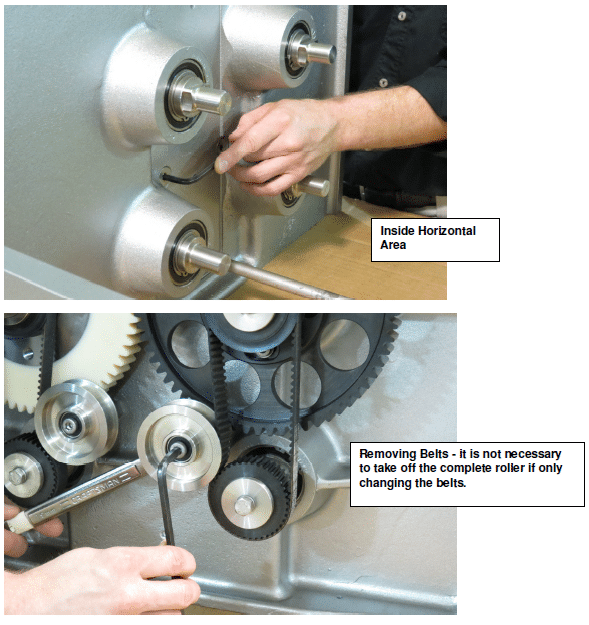

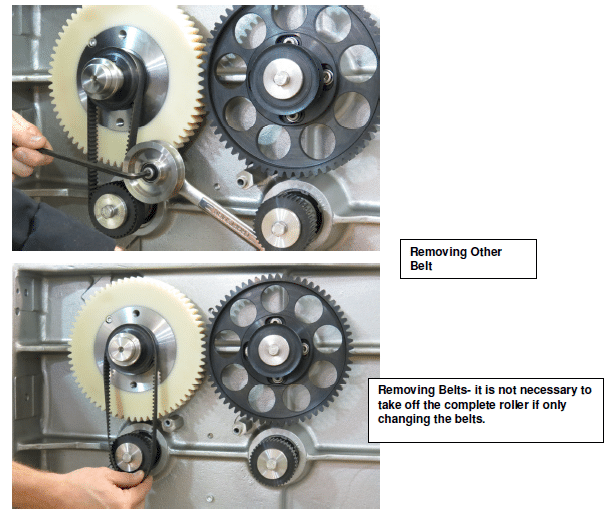

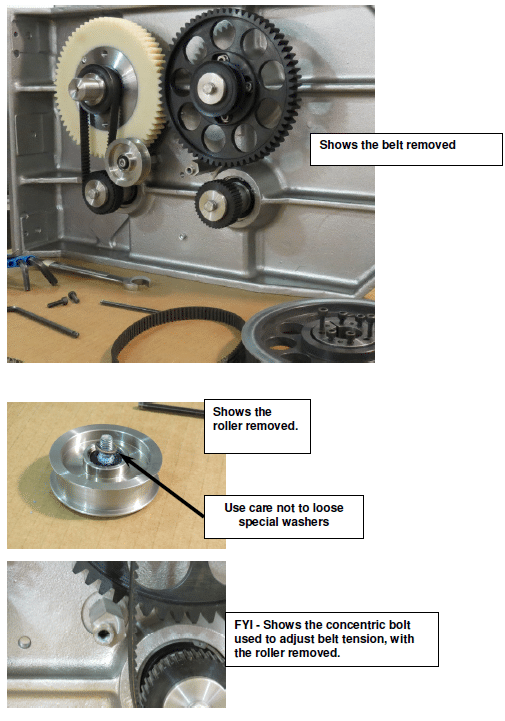

Removing Belts

gear 7

gear 8

gear9

belt1

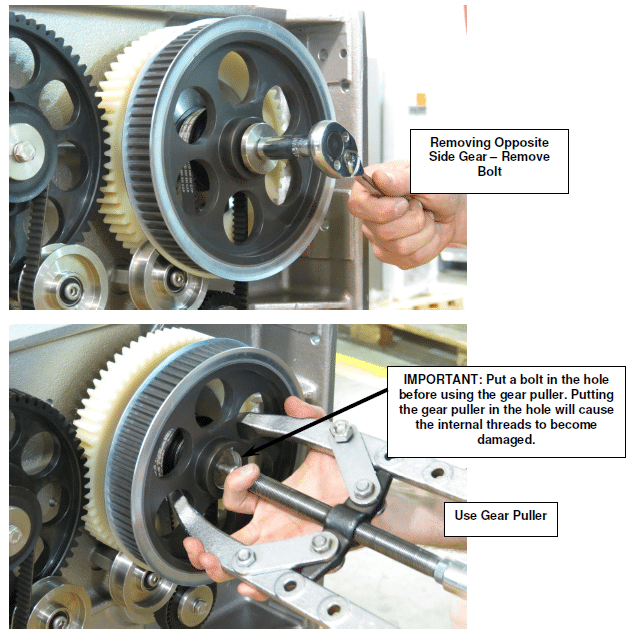

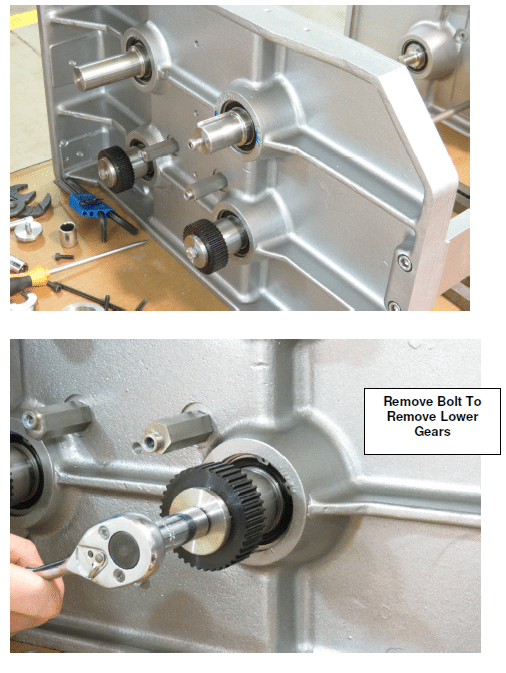

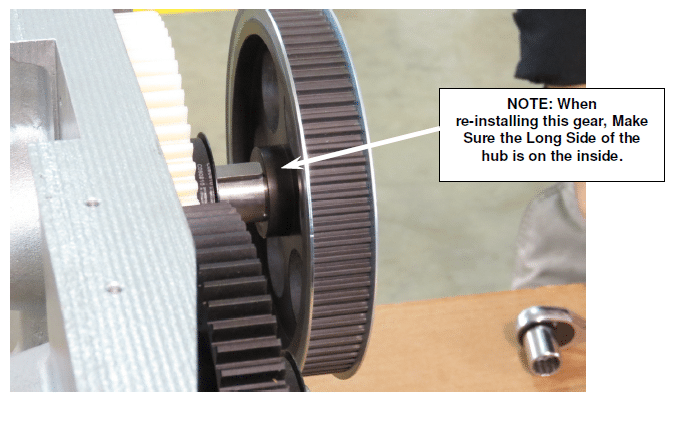

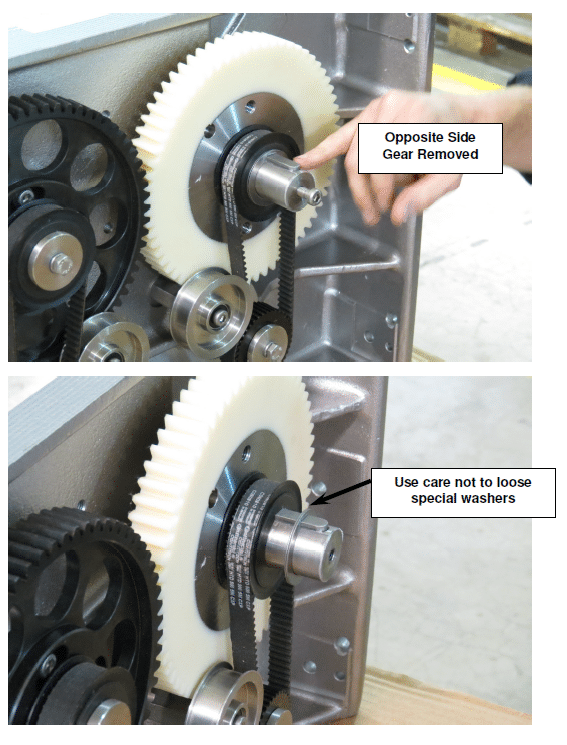

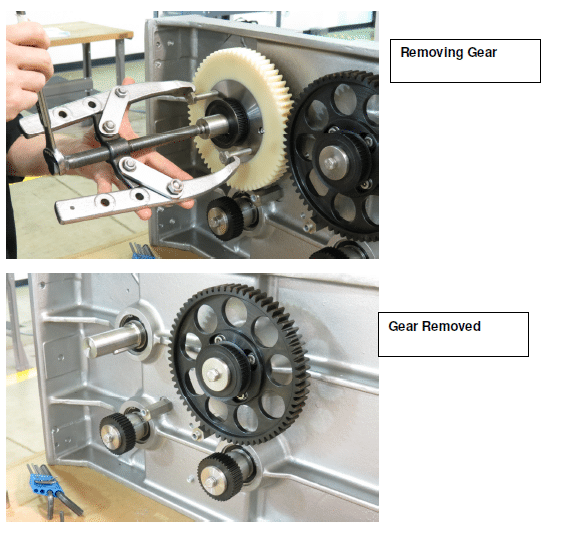

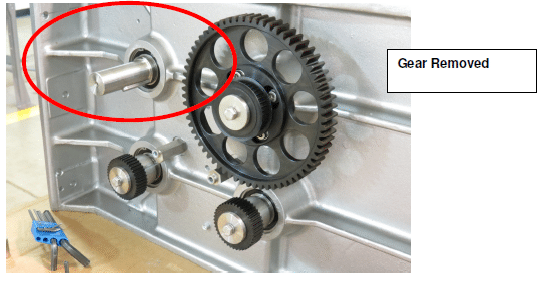

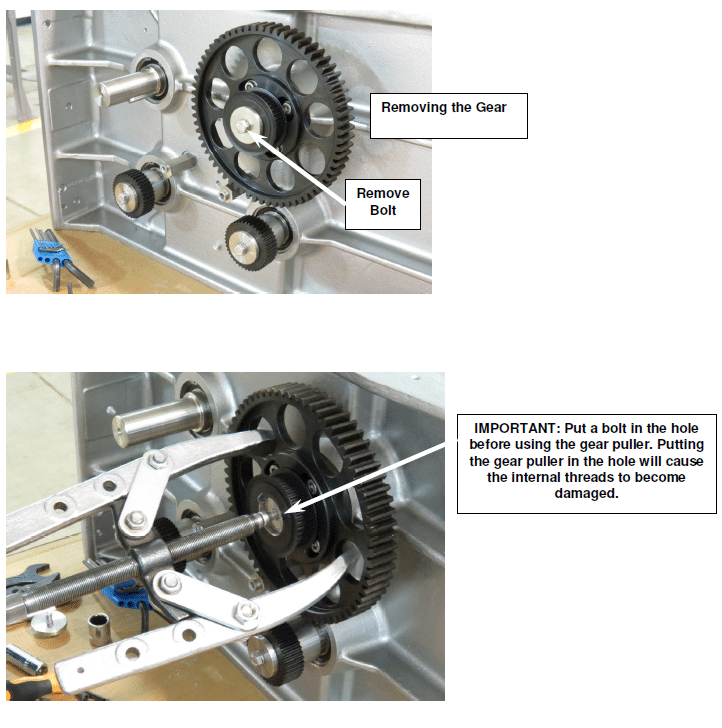

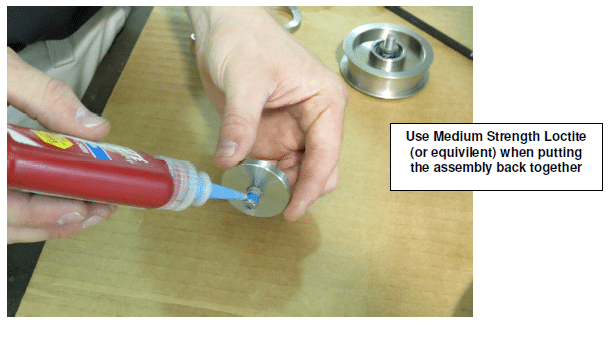

Removing Gear

BELT 2

GEAR REMOVE

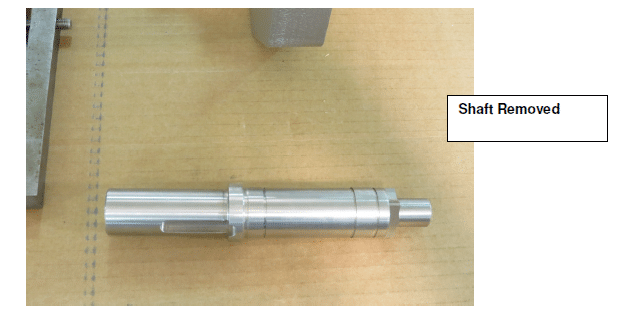

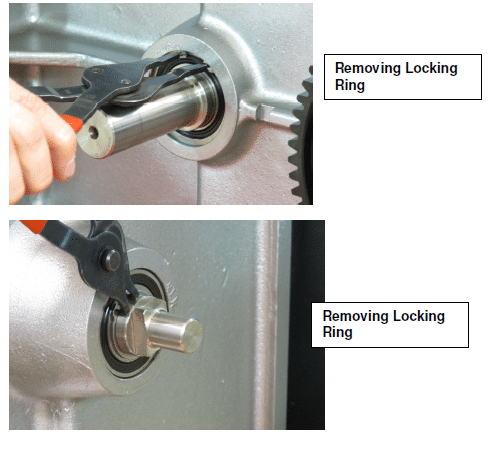

Note: If removing the shafts. The locking rings must be removed as shown below:

NOTE: If Removing the shafts, they can only be removed by pushing thme towards the outside of the machine. SEVERE DAMAGE could result by attempting to push them towards the center of the machine.

BELT3

LOCKING RING

NOTE: If Removing the shafts, they can only be removed by pushing them towards the outside of the machine. SEVER DAMAGE could result by attempting to push them towards the center of the machine.

BOLT
