Air Connection

Connect air to your ROVEMA Vertical Form Fill and Seal (VFFS) Bagger

Connect the machine to the compressed air system. Note: The bag maker typically requires 85-120 PSI of air pressure for normal machine operation.

1. Verify that the main supply valve on the machine is in the off position.

2. Connect the hose to the machine and secure all connections.

3. Verify all connections remain secure when the air supply is turned on.

CAUTION! : Unsecured air hoses could blow off the connection causing the hose to spray high-pressure air, in an uncontrolled situation, which could be dangerous to the machine and/or personnel.

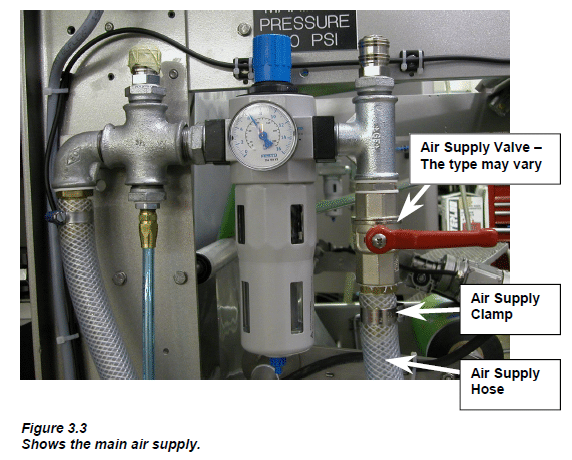

abc-6



------------------------------------------------------------------------
